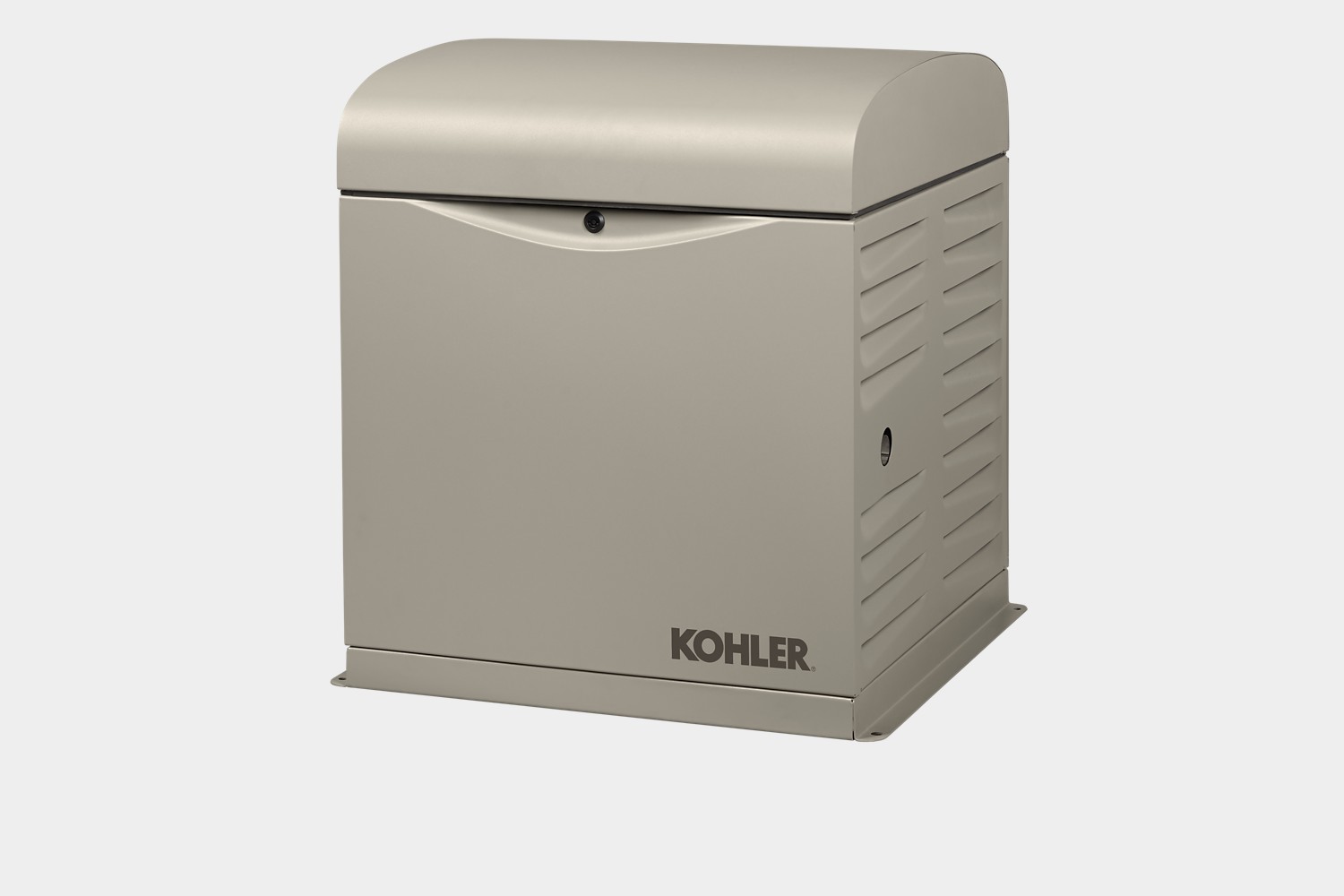

10 kW Generator with ATS
10RESVL WITH AUTOMATIC TRANSFER SWITCH AND ONCUE PLUS SINGLE PHASE, LPG|NATURAL GAS
| Rated kW LP |
10 kW |
| Rated kW NG |
9 kW |
| Amps LP |
41.7 amps |
| Amps NG |
37.5 amps |
| Peak Motor Starting kVA @240 V |
16.8 kVa |
| Alternator Note |
All information shown is for 1 Phase 60 Hz generator with the largest alternator option available. |
| Displacement |
725 cm3 (44 cu. in.) |
| Horsepower |
NG 18 HP, LP 21.4 HP |
| Enclosure Material |
Steel |
| Sound Output During Weekly Exercise |
67 dB(A) |
| Sound Output During Full-speed Operation |
71 dB(A) |
| Response Time |
10 seconds |
| Warranty |
Premium five-year limited warranty |
| Country of Origin |
US |
| Certifications/Listings |
UL 2200|EPA |
| Automatic Transfer Switch Included |
Yes |
| Remote Monitoring Available |
Included |
| Off Grid / Utility Backup |
Utility Backup |
| Weight |
484 lbs. |
| Alternator Type |
2-Pole, Rotating Field |
| Fuel Consumption on NG at 50% load? |
101 cfh |
| Fuel Consumption on LP at 50% load? |
51 cfh |
| Controller |
DC2 Digital Controller |
| Cylinder Arrangement |
V-2 |
| Dimensions |
712mm x 777mm x 824mm (28 in. x 30 in. x 32.4 in.) |
| Engine Manufacturer/Description |
KOHLER |
| Engine Model |
KT725 |
| Engine/Alternator RPM |
3600 |
| Fuel Type |
LPG|Natural Gas |
| Frequency |
60 Hz |
| Phase |
Single Phase |
| Voltage @ 60 Hz |
120/240 |
| Digital Voltage Regulation |
±1.0% |
New/Used: New
Category: Generators
Our generators for backup power provide reliability and performance. When you lose power during an outage or storm, a hard-working 10 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.* OnCue® Plus Generator Management System is standard with every RESV or RESVL generator.
-
High Quality Power.
Kohler generators provide advanced voltage and frequency regulation along with ultra-low levels of harmonic distortion for excellent generator power quality to protect your valuable electronics.
-
Powerful.
Exclusive PowerboostTM technology provides excellent starting power.
-
Reliable.
Kohler is known for extraordinary reliability and performance and backs that up with a 5-year or 2000 hour limited warranty.
-
Enclosure
Bold new Kohler design in steel, dipped in e-coat for extra corrosion protection and painted with a durable powder coat finish.
-
Remote Monitoring
Every 10RESVL comes standard with OnCue® Plus, our remote monitoring system, which gives you peace of mind at home no matter where you are in the world.
THE POWER YOU NEED
-
PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
-
Extraordinary peak motor-starting capacity: 10RESVL at 16.8kVA at 240V
-
Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
-
Powered by reliable KOHLER Series 7000 V-twin engine with efficient OHV design. operation speed is 3600 rpm (the standard for air-cooled generators)
-
Compatible with Programmable Interface Module (PIM)
-
Also compatible with Load Control Module (LCM) with single-phase generators only
-
Sold only in select channels
THE CONVENIENCES YOU EXPECT
-
-
DC2 controller designed for today's sophisticated electronics manages both the generator set and Model RXT transfer switch functions
-
Accepts natural gas fuel pressure as low as 3.5 inches
-
Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
-
Meets 181 mph wind rating
-
Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
*Based on generator and load size.
